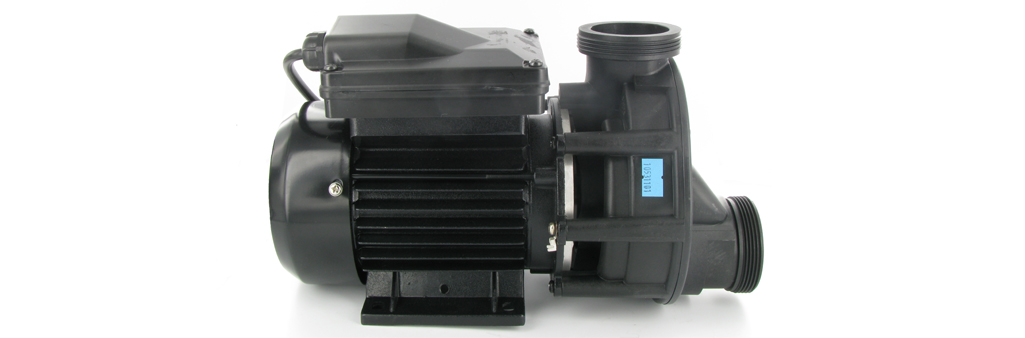

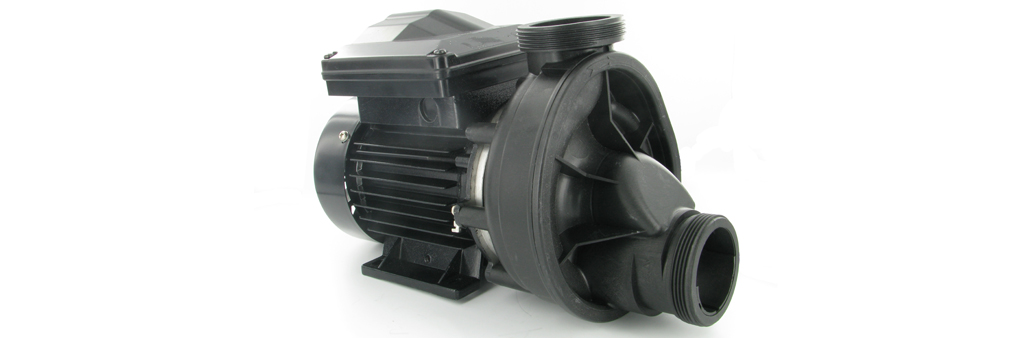

• Pump for bathtubs and whirlpool baths
• Max. pressure: 1 bar
• Max. flow: 18 m³/h

Technical features

• Polypropylene pump body
• Capacitor integrated into the terminal box
• Integration of the electronic control PCB on request
• Self draining
• Single and three phase voltages 50Hz or 60 Hz
• Single-speed or multi-speed

Performances

• 560 W motor: Max. flow 12 m³/h at 0,4 bar. Max. pressure: 0,7 bar
• 750 W motor: Max. flow 16 m³/h at 0,5 bar. Max. pressure: 1 bar
• 900 W motor: Max. flow 18 m³/h at 0,6 bar. Max. pressure: 1,1 bar

Consult he technical date sheet curves to know the flow rate depending on the chosen operating point.

Complies with Standards

• 2004/108/EC
• EN 60 335-1
• EN 60 335-2-41

Applications

• Pump specifically designed for whirlpool bath and shower
